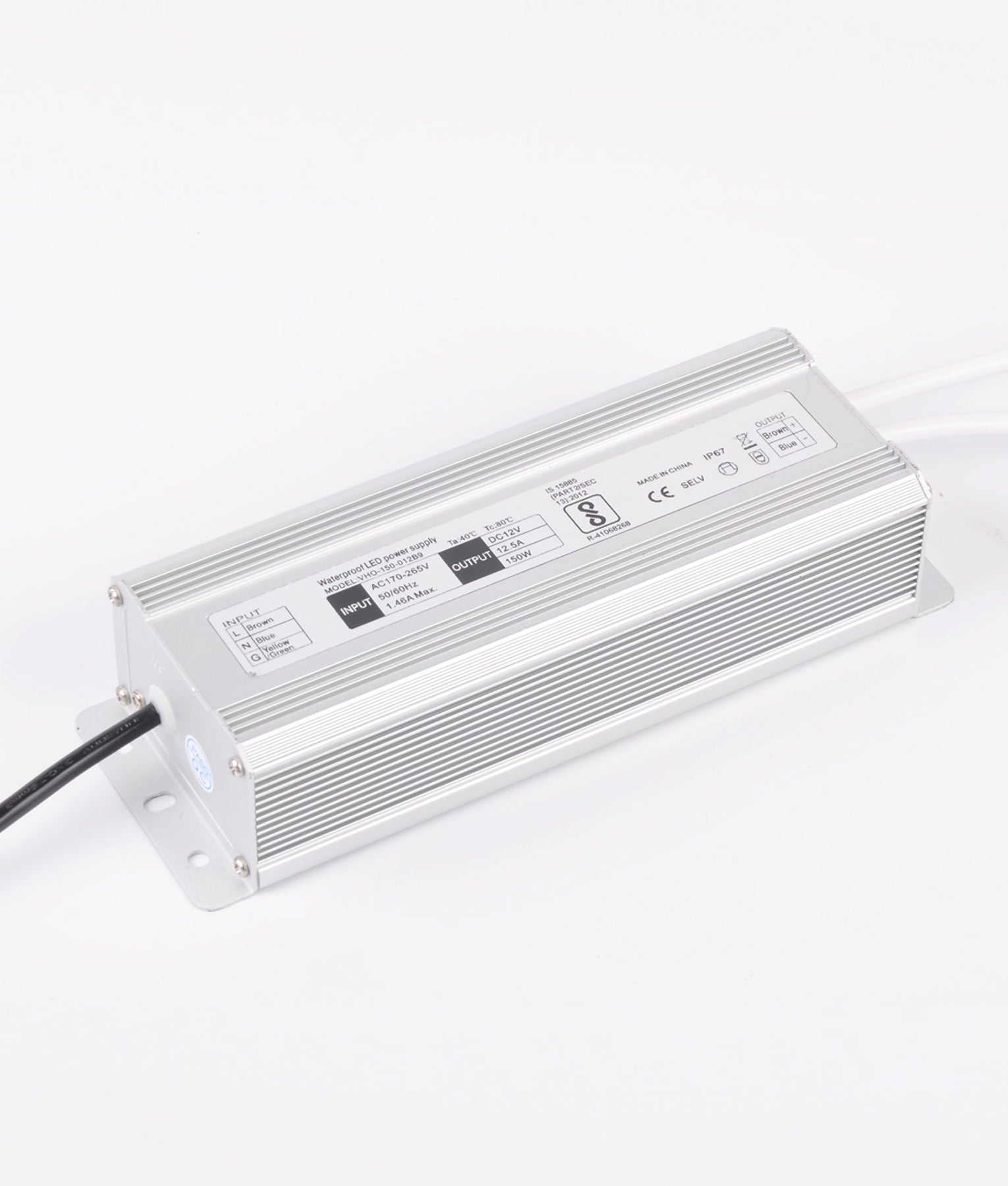

12V DC constant voltage LED driver
Input voltage: 170-265V 50/60Hz
Output voltage: 12V DC
Load: 15-120W
Current: 12.5A
Short circuit, overload and thermal protection
Built in Active PFC function
Ambient temperature: -30 to 50°C
Flex & plug included: 1.2m
IP rating: IP67

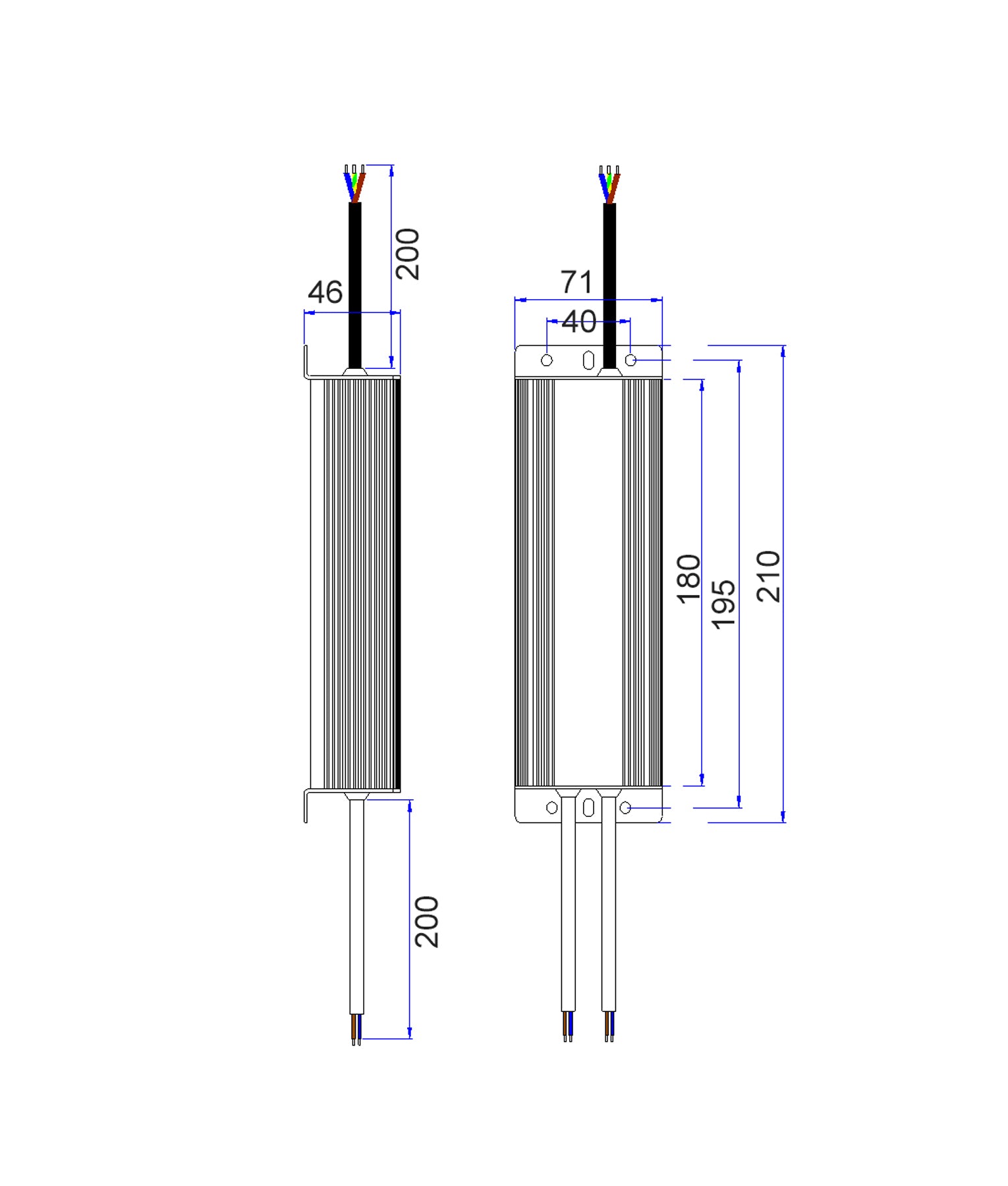

Dimensions: 210x71x46mm
3 years manufacturer warranty
This Driver is manufactured with a split cable format for carrying increased current for easier connection of multiple loads.
Each driver can be used:
● At full load capacity by connecting all cables to one terminal block
● With any combination of split cables (as long as the minimum and maximum loads below are adhered to) FULL load capacity CANNOT be connected to one cable
EESS Equip No: E2023096273
SAA Certificate No: SAA-192361-EA
