Waterproof 12V Constant Voltage LED Driver Load: 20-160W IP67


12V DC constant voltage LED driver
Input voltage: 170-265V 50/60Hz
Load: 20-160W
Output voltage: 12V DC
Current: 25A
Short circuit, overload and thermal protection
Built in Active PFC function
Ambient temperature: -30 to 50°C
Flex & plug included: 1.2m
IP rating: IP67

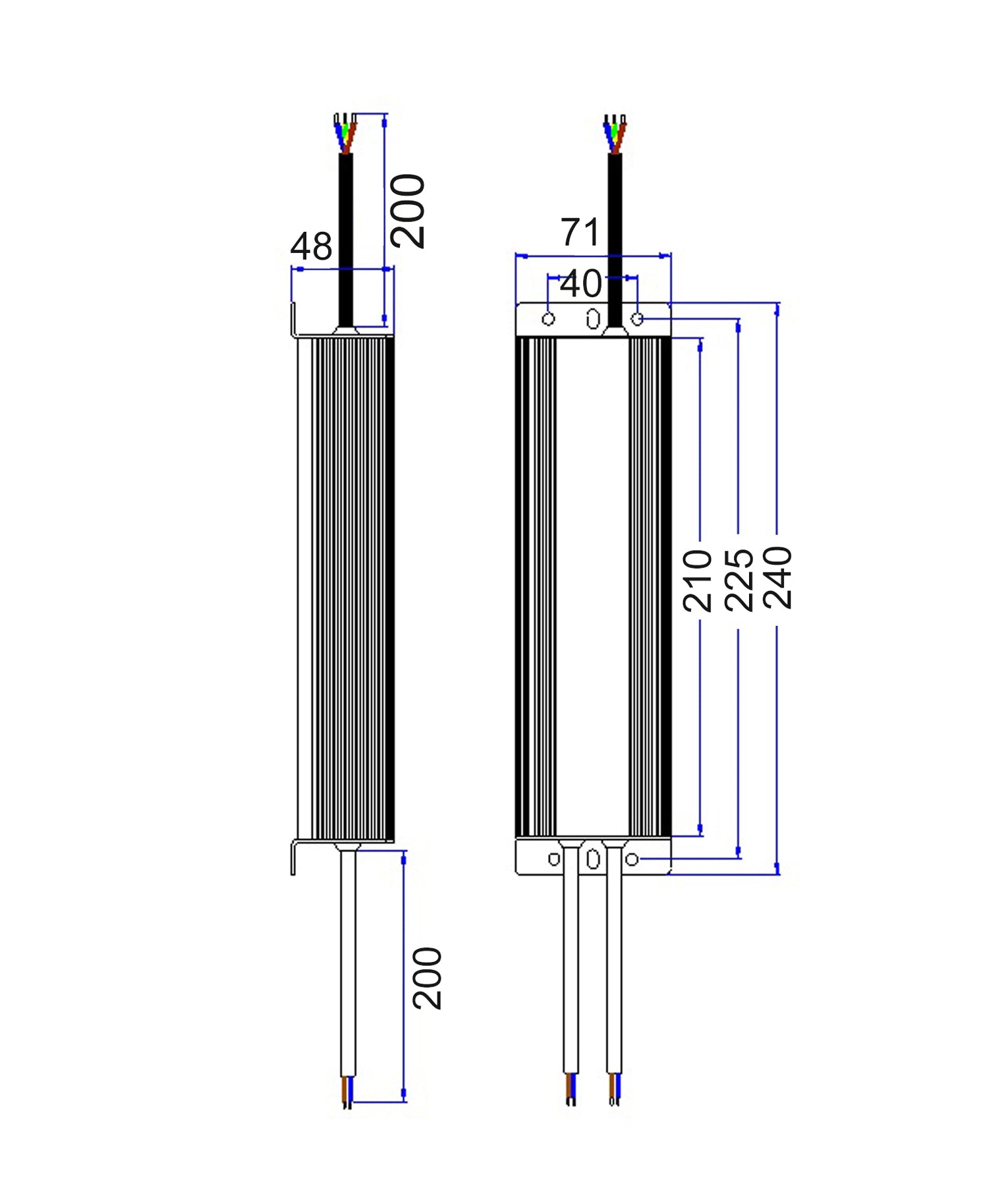

Dimensions: 240x71x48mm
3 years manufacturer warranty



This Driver is manufactured with a split cable format for carrying increased current for easier connection of multiple loads.

Each driver can be used:

● At full load capacity by connecting all cables to one terminal block

● With any combination of split cables (as long as the minimum and maximum loads below are adhered to) FULL load capacity CANNOT be connected to one cable
